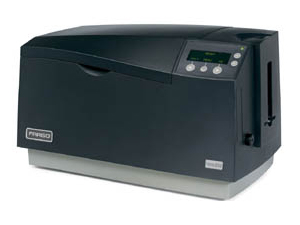

Fargo DTC550 Double Sided
Fargo DTC550 Duplex ID Card Printer menggabungkan fitur keamanan jaringan yang kuat dan volume kinerja yang tinggi dalam pekerja keras kasar yang cocok untuk setiap lingkungan profesional yang membutuhkan dua sisi ID Card. Dengan profil fitur yang kaya dan konfigurasi LAN yang tersedia, Duplex DTC550 sangat cocok untuk instalasi di mana saja di dalam sebuah jaringan.
Ethernet printer ini siap dirancang untuk mempermudah staff IT dan spesialis keamanan yang sama, karena fitur-fitur keamanan yang kuat serta plug and play pada kompatibilitas Windows. Tidak ada batasan untuk jenis kartu Anda dapat dihasilkan dengan DTC550 Duplex ID Card Printer. Cocok untuk Kartu ID, kartu karyawan , Kartu Mahasiswa, dan banyak lagi.
Dual Input Hopper 100 pcs kartu membuat volume tinggi di setiap pencetakan, sementara kartu hopper menolak produksi terus bergerak tanpa membuat kartu rusak. Optional smart card dan magnetik stripe encoding menambahkan kemungkinan tambahan untuk program produksi kartu. Format meliputi: koersivitas triple ISO Mag Stripe Encoding, Proximity Card Encoding, Contactless Smart Card Encoding, di HID, MIFARE dan format iClass.
PrinterKartu.Com membawa semua konfigurasi dari Printer Fargo DTC 550 Series termasuk :
Fargo DTC550
FargoDTC550-LC dengan Laminator
Fargo DTC550-LCD Duplex dengan Laminator
Printer specification Fargo DTC550 Double Sided :
- Print Method : Dye-Sublimation / Resin Thermal Transfer
- Resolution : 300 dpi (11.8 dots/mm)
- Colors : Up to 16.7 million / 256 shades per pixel
- Overlaminate Options : Thermal Transfer Overlaminate, .25 mil thick • PolyGuard Overlaminate, 1.0 mil and .6 mil thick
- All overlaminates available in clear, standard holographic design or custom high secure or secure holographic design.
- Print Speed:
- 7 seconds per card / 514 cards per hour (K)*
- 12 seconds per card / 300 cards per hour (KO)*
- 27 seconds per card / 144 cards per hour (YMCKO)*
- 36 seconds per card / 109 cards per hour (YMCKOK)*
- 34 seconds per card / 102 cards per hour (YMCKK/lamination)*
- Accepted Standard Card Sizes: CR-80 (3.370″L x 2.125″W / 85.6mmL x 54mmW); CR-79 Adhesive Back (3.313″L x 2.063″W / 84.1mmL x 52.4mmW)
- Print Area: CR-80 edge-to-edge (3.36″L x 2.11″W / 85.3mmL x 53.5mmW); CR-79 (3.30″L x 2.04″W / 83.9mmL x 51.8mmW)
- Accepted Card Thickness: Print only: .020″ (20 mil) to .050″ (50 mil) / .508mm to 1.27mm (single-sided printing only for 50 mil cards); Print/Lamination: .030″ (30 mil) to .040″ (40 mil) / .762mm to 1.02mm
- Accepted Card Types: PVC or polyester cards with polished PVC finish; monochrome resin required for 100% polyester cards; optical memory cards with PVC finish
- Input Hopper Card Capacity: Dual hoppers, 100 cards each (.030″ / .762mm)
- Output Hopper Card Capacity: 100 cards (.030″ / .762mm)
- Card Cleaning: Removable card cleaning cartridge with replaceable cleaning roller
- Memory: 16MB RAM
- Display: User-friendly, SmartScreen™ LCD Control Panel; LED display on optional Card Lamination Module
- Software Drivers: Windows® 2000/XP/Server 2003
- Interface: USB 1.1 (USB 2.0 compatible); optional 10BASE-T Ethernet with internal print server
- Operating Temperature: 65° to 80° F / 18° to 27° C
- Humidity: 20-80% non-condensing
- Dimensions: DTC550: 10.75″H x 18.5″W x 11″D / 273mmH x 470mmW x 279mmD; DTC550 + Lam: 10.75″H x 30.5″W x 11″D / 273mmH x 775mmW x 279mmD; Lam Module: 10.25″H x 30″W x 11″D / 260mmH x 762mmW x 279mmD
- Weight: DTC550: 20 lbs. / 9.1 kg, DTC550 + Lam: 39 lbs. / 17.7 kg, Lam Module: 19 lbs. / 8.6 kg
- Agency Listings: Safety: UL 60950-1, CSA C22.2 (60950-1) and CE EMC: FCC Class A, CRC c1374, CE (EN 55022 Class A, EN 55024, ENG 1000-3-2, ENG 1000-3-3)
- Supply Voltage: 100-240 VAC, 3.3A
- Supply Frequency: 50 Hz /60 Hz
- Warranty: Printer: Two years including one year of free printer loaner support (U.S. only); optional Extended Warranty Program (U.S. only); Printhead: Two years, unlimited pass with UltraCard™ Cards
- Fargo Secure Materials Fargo Card Printer/Encoders require highly specialized media to function properly. To maximize printed card quality and durability, printhead life and printer/encoder reliability, use only Fargo Secure Materials. Fargo warranties are void, where not prohibited by law, when non-Fargo Secure Materials are used.
- Encoding Options:
- ISO Magnetic Stripe Encoding, triple coercivity, Lo-Co 300, Hi-Co 2750, Hi-Co 4000,Tracks 1, 2, and 3
- Contact Smart Card Docking Station
- Contactless Smart Card Encoder (HID® iCLASS®, MIFARE® and MIFARE DESFire)
- Contact Smart Card Encoder reads from and writes to all ISO7816-1/2/3/4 memory and microprocessor smart cards (T = 0, T = 1) as well as synchronous cards
- Prox Card Encoder (HID read-only)
- Additional Options:
- Card Lamination Module
- Card hopper lock
- Printer cleaning kit
- Magnetic stripe encoding
- Ethernet with internal print server
- Contact and contactless smart card encoding
- Dual-sided printing
